Battery Automatic Film Covering and Collecting Machine

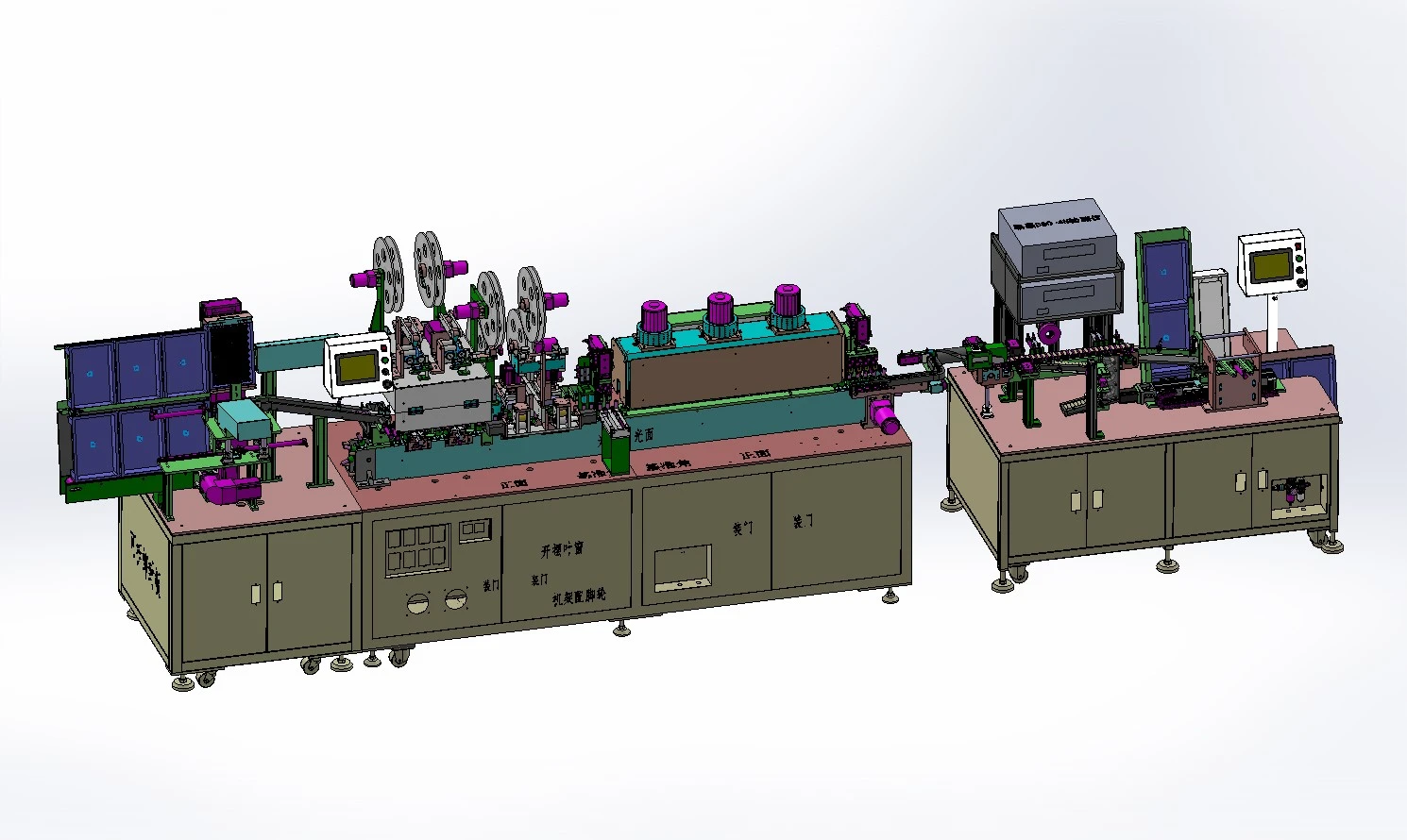

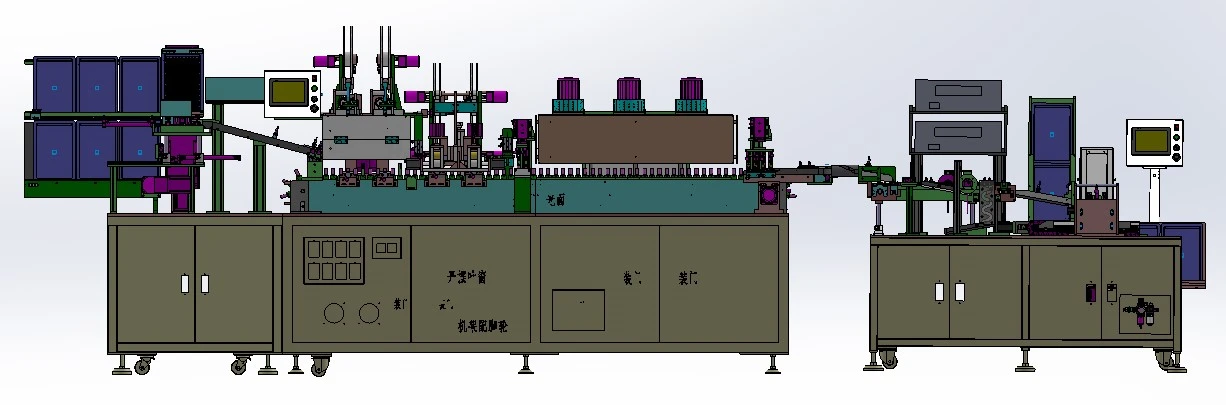

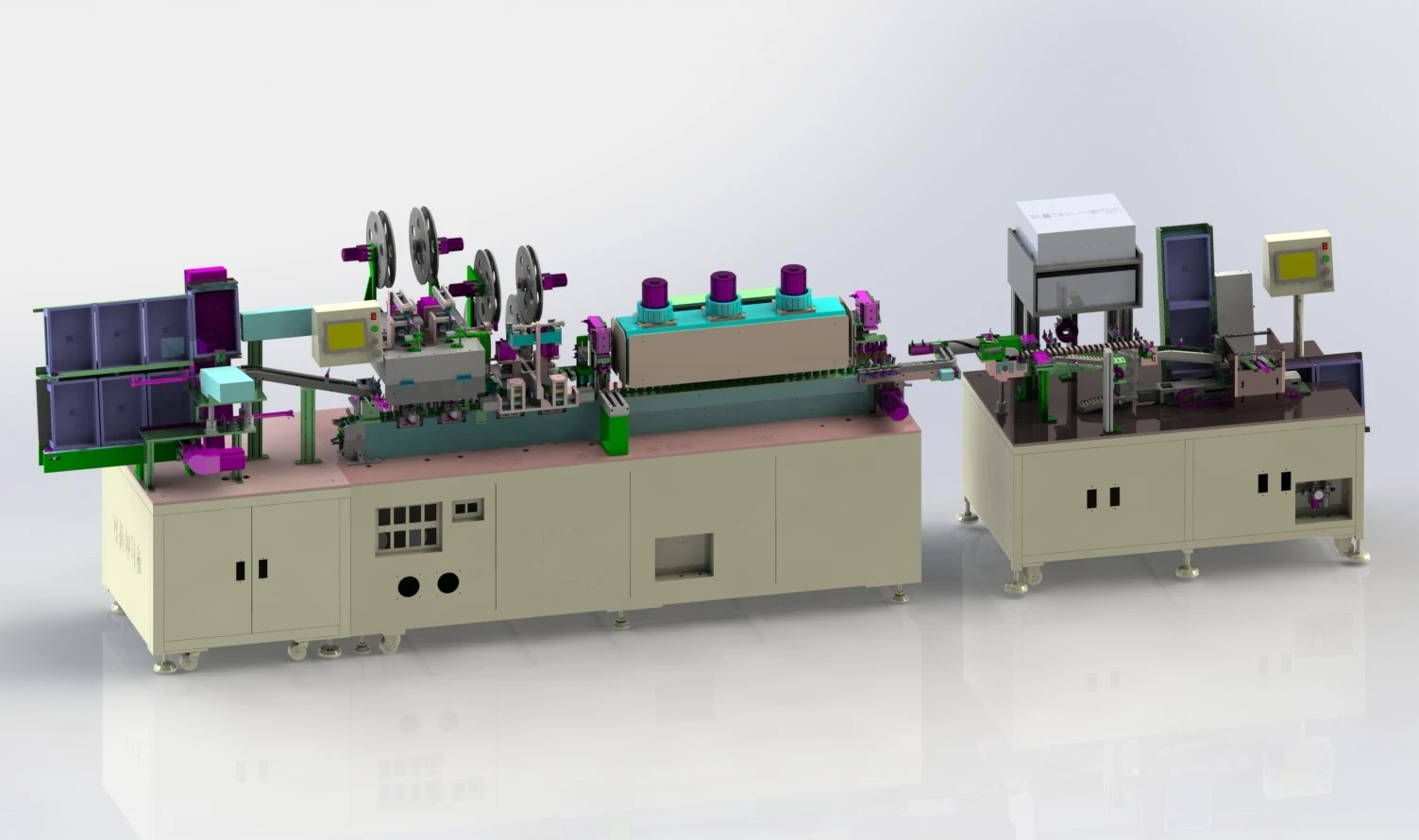

The Battery Automatic Sleeving and Packaging Integrated Machine, developed by Zhuote, is designed for single batteries to perform the processes of applying heat-shrinkable sleeves with insulating pads, heat shrinking, and collecting/packaging into boxes.

Single batteries are manually loaded as entire trays. A conveying mechanism automatically feeds the trays into the system, while a lifting mechanism controls the vertical movement of the magazine. A pick-and-place device automatically unloads batteries in complete rows for discharge. A pushing device then automatically transfers the batteries into positioning magnetic bases on the conveyor chain.

The conveyor chain automatically transports the batteries sequentially to the sleeving station, face pad application station, and automatic heat shrinking oven. The oven features two-stage constant temperature control: the first section at the inlet serves as a preheating zone, and the second section is the main heating zone. After processing, batteries are automatically discharged to the collection machine.

A feeding mechanism automatically conveys and positions the batteries. The system automatically tests the open-circuit voltage and load voltage of each battery. A CCD vision system automatically inspects the shrinkage quality of the sleeve on both positive and negative terminals, detects the concave point at the negative bottom, and identifies faulty face pad placement. Defective products are automatically rejected.

Qualified batteries are automatically boxed. A stepper motor drives the lifting mechanism to complete the automatic boxing and positioning process. Once a box is full, it is automatically ejected for manual collection.

• Features whole-tray battery feeding with precise magnetic base fixation.

• Automatic sleeve feeding and cutting, with automatic unwinding of full rolls of shrink film.

• Automatic face pad punching and application, with automatic unwinding of full rolls of face pad material and automatic rewinding of waste backing material.

• Automatic sleeve shrinking using a vertical rotating method. An OMRON temperature controller ensures precise, uniform oven temperature for excellent shrinkage results.

• The battery inlet is directly connected to the outlet of the sleeving machine.

• Automatic testing of open-circuit voltage and load voltage, with automatic rejection of defective products.

• CCD vision system automatically inspects sleeve shrinkage on positive/negative terminals, the concave point on the negative bottom, and face pad placement errors, automatically rejecting defective units.

• Stepper motor controls the vertical movement for whole-box collection, ensuring precise descent distance for each cycle.

• User-friendly machine design, easy mold installation/removal, simple adjustment and maintenance, reliable stability, and comprehensive functionality.

Whole-tray battery feeding → Automatic battery pick-and-place → Automatic transfer to conveyor chain → Sleeving application → Face pad application → Face pad presence inspection → Automatic rejection of defective products → Heat shrinking → Automatic battery feeding (inlet connected to sleeving machine outlet) → Automatic battery feeding through chute → Open-circuit voltage and load voltage testing → CCD inspection of sleeve shrinkage on terminals, negative terminal concave point, and face pad placement → Automatic rejection of defective products → Automatic discharge of qualified products → Automatic battery transfer via feeding block → Pushing mechanism inserts batteries into collection box / automatic box lifting → Full boxes automatically discharged / Manual collection

We offer customized designs and additional function expansion for various models based on customer requirements.

As the original manufacturer of Battery Automatic Sleeving and Packaging Integrated Machine, we have a proven track record of consistently supplying high-quality equipment to major domestic and international companies. We provide a one-year warranty and lifelong technical support, and we welcome the opportunity to serve you.
