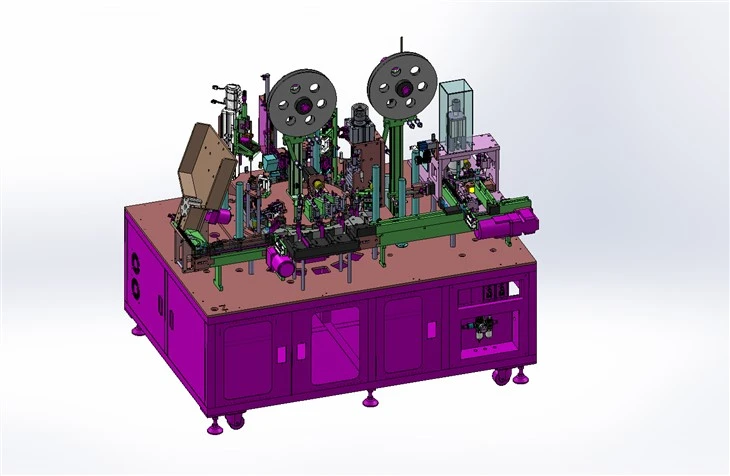

Bottom Welded Spotting Grooving Machine With Insulating Pad

The Bottom Welded Spotting Grooving Machine with Insulating Pad, independently developed, manufactured, and sold by Zhuote Company, is a multi-functional integrated system equipped for key battery processes such as bottom welding, positive electrode insulating pad application, and grooving.

• Equipped with CCD automatic inspection for the core winding hole, with automatic rejection of defective units.
• Performs automatic needle insertion and bottom spot welding, ensuring stable and consistent welding quality.
• Features automatic detection of cold solder joints, with automatic rejection of welding-defective products.
• Incorporates automatic alignment of the tab and automatic punching/placement of the top pad, guaranteeing stable and consistent pad placement.
• Executes automatic grooving with high precision, stable performance, and excellent consistency.
• Simple equipment adjustment and maintenance, with easy mold installation and removal, facilitating straightforward product size changes.
• Integrates multiple automated functions including CCD core hole inspection, bottom spot welding, short-circuit testing, insulation plate installation, and grooving for a high degree of automation.
• Utilizes an HMI (Human-Machine Interface) for display and employs a centralized control system with a Programmable Logic Controller (PLC) and modules.
• Designed for automatic integration and connection with an automatic laser cap welding machine.

Auto Feeding → CCD Inspects Core Winding Hole → Auto Needle Insertion → Bottom Spot Welding → Short Circuit/Pull Test for Cold Solder Joints → Insulating Pad Application → Rejection of Welding/Core Hole/Top Pad Defects → Grooving/Dust Extraction → Discharging

The batteries are automatically fed onto a conveyor belt. A pushing device then automatically transfers them into a feeding mechanism, which carries the batteries to the CCD inspection station for core winding hole detection. After inspection, the batteries are automatically transferred to the next station for automatic needle insertion and bottom spot welding.

Upon completion of welding, the batteries are automatically advanced to the cold solder joint inspection station. After this check, they proceed to the automatic face pad application station. Once the pad is applied, the batteries move to the next station to verify the presence of the face pad. Following this inspection, they enter the automatic defect rejection station, where units with defective core holes, face pads, or welds are automatically removed.

Qualified batteries automatically flow into the feed chute of the grooving mechanism. A feeding device then positions each battery beneath the upper push rod of the grooving station. The battery is centered within the drive section by the upper and side push rods. The upper push rod, actuated by a compression cylinder, precisely presses the battery into the positioning mold while applying a specific pressure. The positioning mold rotates at high speed, driven by a motor.

The grooving feed mechanism, powered by its motor and cam, performs the grooving operation. After grooving is complete, the battery is automatically pushed to the next station for dust extraction. Once dust removal is finished, a pusher ejects the battery into the discharge chute for automatic output. The outlet is designed to connect directly to the feeding chute of an automatic cap welding machine.

Bottom Welded Spotting Grooving Machine with Insulating Pad design is user-friendly, featuring simple operation, and delivers stable, reliable, and highly efficient performance.

We offer customized designs for various models based on customer requirements.

As an original manufacturer of Cell Insertion Machine, our products have been consistently and reliably supplied to major domestic and international companies. We provide a one-year warranty and lifetime maintenance support. We welcome your inquiries and orders.
